How to Build a Vault Room in Your Home

A well-built home vault room can provide a dedicated place to protect firearms, valuables, precious metals, important documents, collectibles, and other property. But building one involves much more than putting a heavy vault door on a concrete room.

At NW Safe, we look at vault rooms as complete security systems. The walls, ceiling, floor, vault door, frame, locking system, ventilation, electrical work, location, and even the path used to install the door can affect how well the finished room performs.

If you're wondering how to build a vault room in your home, our biggest recommendation is to start planning early. Ideally, the vault room and residential vault door should be considered while the home is being designed or before a major remodel begins.

Here's what homeowners should know.

What Is a Home Vault Room?

A home vault room is a reinforced space designed to provide more security than a conventional room or closet. Unlike a gun safe, which is manufactured as a complete freestanding security container, a vault room uses part of the home's structure to create the secure enclosure. Reinforced walls, floors, ceilings, and a purpose-built vault door work together to protect the interior.

Vault rooms can be used for much more than firearms. Depending on the homeowner, we see these spaces used for:

• Firearm collections

• Precious metals

• Jewelry and watches

• Important documents

• Family heirlooms

• Collectibles

• Emergency supplies

• Other high-value property

A larger room can also provide enough space for shelving, cabinets, workbenches, gun displays, safes, and other storage systems. The key is deciding how the room will be used before construction begins.

16 Steps to Building a Vault Room

1. Decide What Your Vault Room Will Protect

Before thinking about concrete thickness or comparing vault doors, determine what you plan to put inside the room. A homeowner protecting a large firearm collection has different needs than someone primarily storing gold, jewelry, documents, or collectibles.

Think beyond what you own today.

Collections grow. Storage needs change. Shelving and cabinets consume space quickly. If you have the opportunity during new construction, we generally recommend giving yourself some room to grow. It can be relatively easy to make a vault room larger while the house is still on paper. Expanding reinforced concrete walls several years later is another story.

2. Choose the Best Location for Your Home Vault

One of the first decisions is where to build your vault room.

Basements are popular because foundation walls may already provide part of the concrete enclosure. Vault rooms can also be incorporated into garages, lower levels, closets, offices, or other areas of a home.

There are several questions we recommend asking:

• Can someone easily see the vault entrance?

• Are there exterior walls around the room?

• What's above the ceiling?

• What's underneath the floor?

• Can a heavy vault door physically reach the location?

That final question is particularly important. Residential vault doors can be extremely heavy. Stairs, narrow hallways, finished floors, sharp corners, and tight doorways can turn an otherwise straightforward installation into a major challenge.

During new construction, there may be an opportunity to use a forklift, telehandler, or other equipment to position the door before the house is completely enclosed. Planning ahead can save a lot of trouble.

3. How Thick Should Vault Room Walls Be?

For serious home vault rooms, reinforced concrete is one of the strongest construction options. Approximately 6 to 8 inches of poured reinforced concrete is a common starting point for many residential vault projects, although the appropriate construction depends on the building, security goals, local requirements, and engineering specifications.

Concrete isn't the only option.

In an existing home, pouring new concrete walls may be difficult or impractical. Depending on the security goals, homeowners may consider reinforced wall systems incorporating materials such as plywood, steel, fire-resistant board, or other barriers.

Whatever construction method is used, remember one important principle: Your vault room is only as strong as the enclosure surrounding the door.

Installing a high-security vault door in an ordinary interior wall can leave a much easier path into the room.

4. Reinforce the Ceiling and Consider the Floor

When people picture a vault room, they tend to think about four walls and a door. There are actually six sides to consider. If the vault has conventional wood framing and drywall above it, an intruder may have another potential way into the room. A reinforced concrete ceiling can provide another layer of protection when the design and structure allow it.

The floor also deserves attention. A basement vault built on an appropriate concrete slab presents different challenges than a vault located on an upper floor.

Remember that you're not only accounting for the weight of the vault door. Safes, ammunition, precious metals, cabinets, shelving, firearms, and other contents can add significant weight. Structural questions should be addressed by a qualified architect, engineer, contractor, or other appropriate professional.

5. Choose Your Vault Door Before Building the Opening

This is one of the most important pieces of advice we can give anyone building a vault room: Choose your vault door before finalizing the rough opening.

Residential vault doors are not all built to the same dimensions. Different manufacturers use different frames, mounting systems, wall-depth requirements, swing configurations, and installation methods.

Common vault door sizes include approximately:

• 80" × 30"

• 80" × 36"

• 80" × 42"

Larger options can include sizes around:

• 84" × 48"

• 96" × 40"

• 96" × 48"

When we're working with an 8-inch concrete wall, we often recommend considering an opening around 82" × 40" or larger, depending on the specific door and project. A larger opening can make a noticeable difference when you're carrying firearms, storage cabinets, equipment, or large valuables into the room. Most importantly, get the specifications for your exact door before concrete is poured.

6. Match Your Residential Vault Door to the Wall

The thickness and construction of your wall can determine which vault doors work with your project. Some vault-door frames can accommodate a range of wall depths. Others have more specific requirements.

For example, homeowners building an approximately 8-inch concrete vault may consider options from manufacturers such as Fort Knox, Liberty, AMSEC, and Rhino. Different doors also emphasize different features.

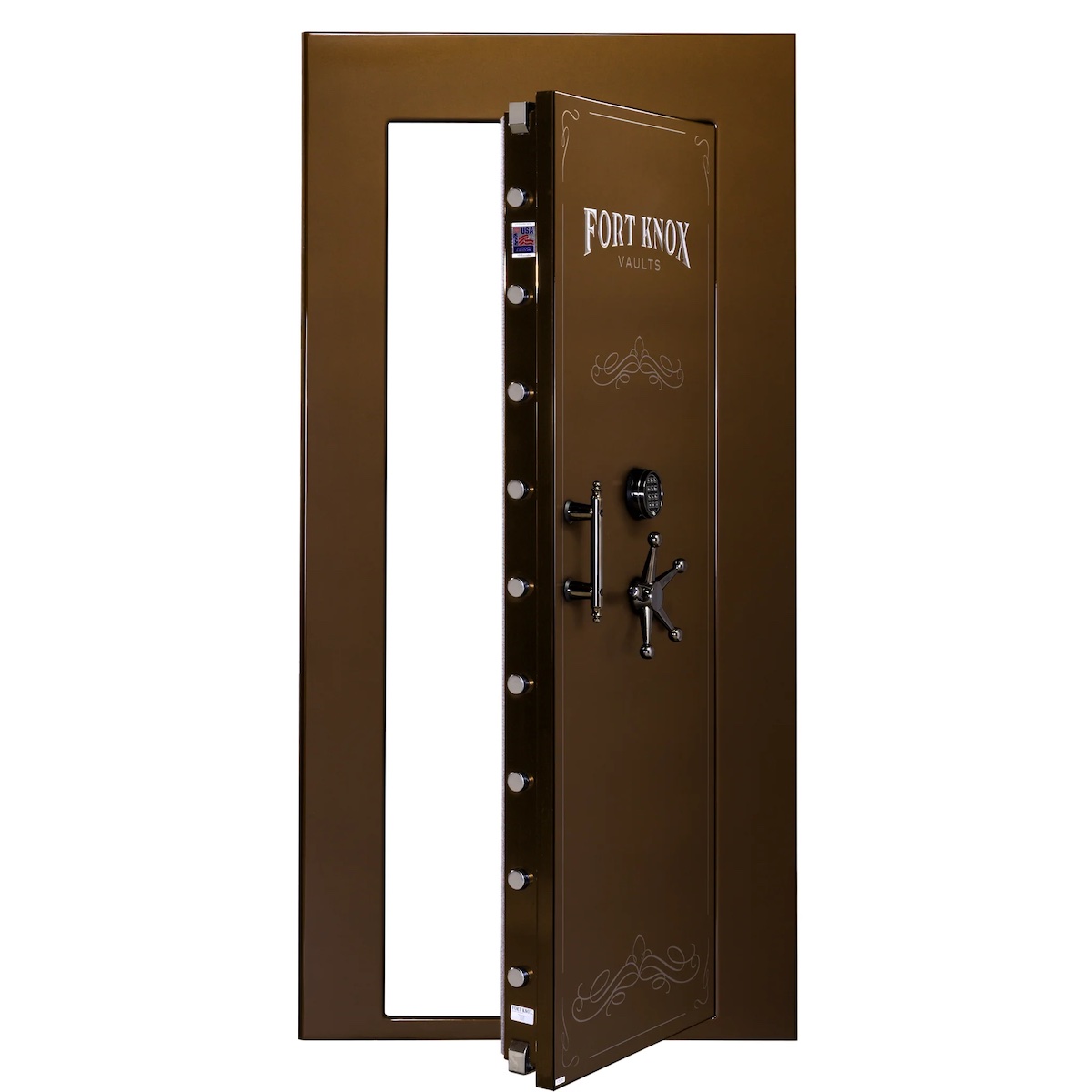

A Fort Knox Vault Door can be configured for substantial security, including additional steel protection on certain configurations. Liberty's Beast Vault Door uses a frame that can accommodate a range of wall depths. AMSEC vault doors offer additional residential security options, while Rhino Ironworks vault doors can be appealing when homeowners want the entrance to become a visual feature of the room.

There isn't one residential vault door that's right for every project.

We look at the wall, opening, security goals, appearance, budget, installation requirements, and intended use before recommending a door.

7. In-Swing vs. Out-Swing Vault Doors

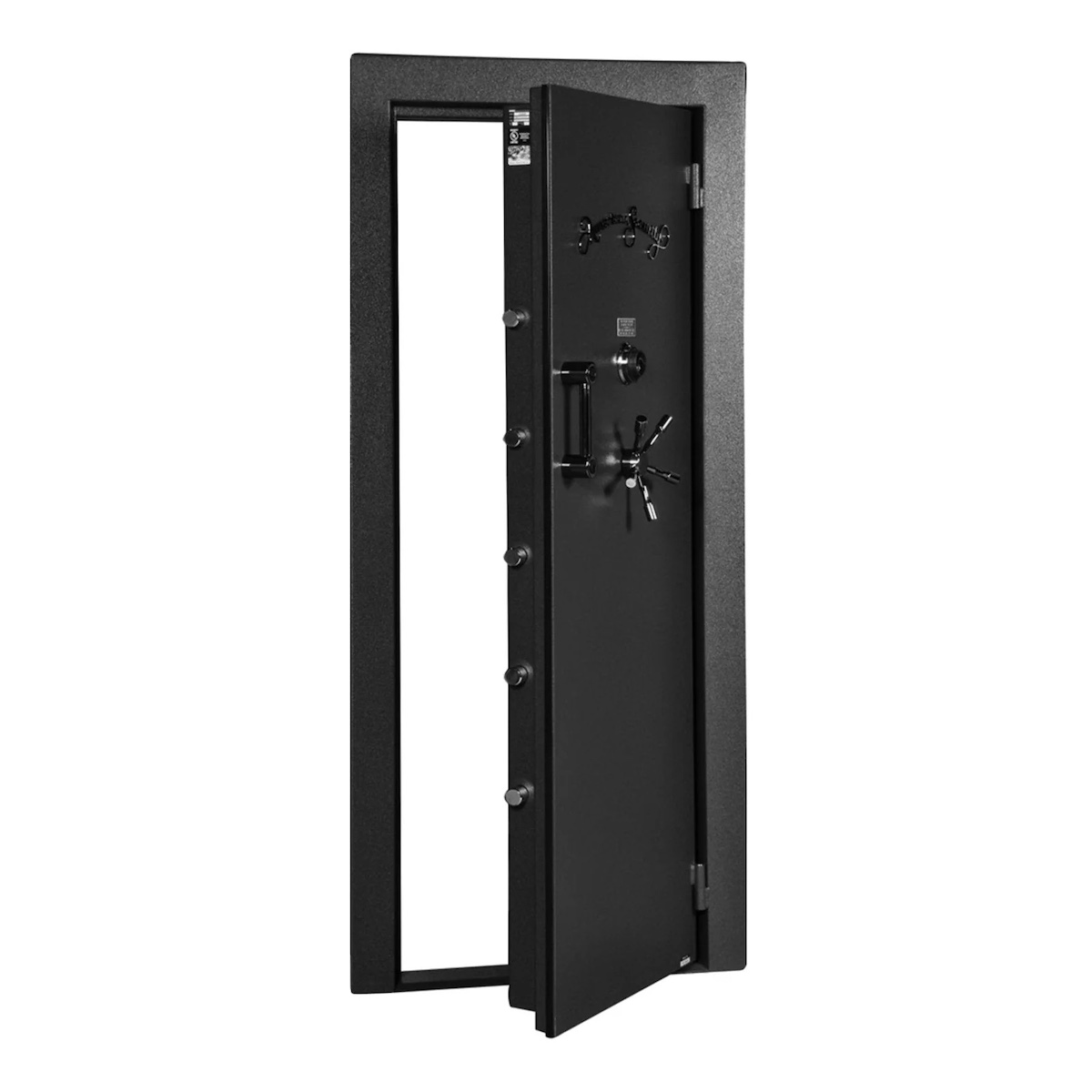

Another major decision is whether you want an in-swing or out-swing vault door. An out-swing vault door opens away from the room. This preserves interior floor space and keeps the door from interfering with cabinets, shelving, or other items inside.

An in-swing vault door opens into the secure room. Why would you want that? One reason is concealment.

An in-swing configuration can make it easier to place a conventional door, hidden door, cabinetry, sliding wall, or other feature in front of the actual vault entrance. However, you need to keep the swing path clear. Storage or other objects inside the vault shouldn't be able to prevent the door from opening. Consider how you will actually use the room before deciding.

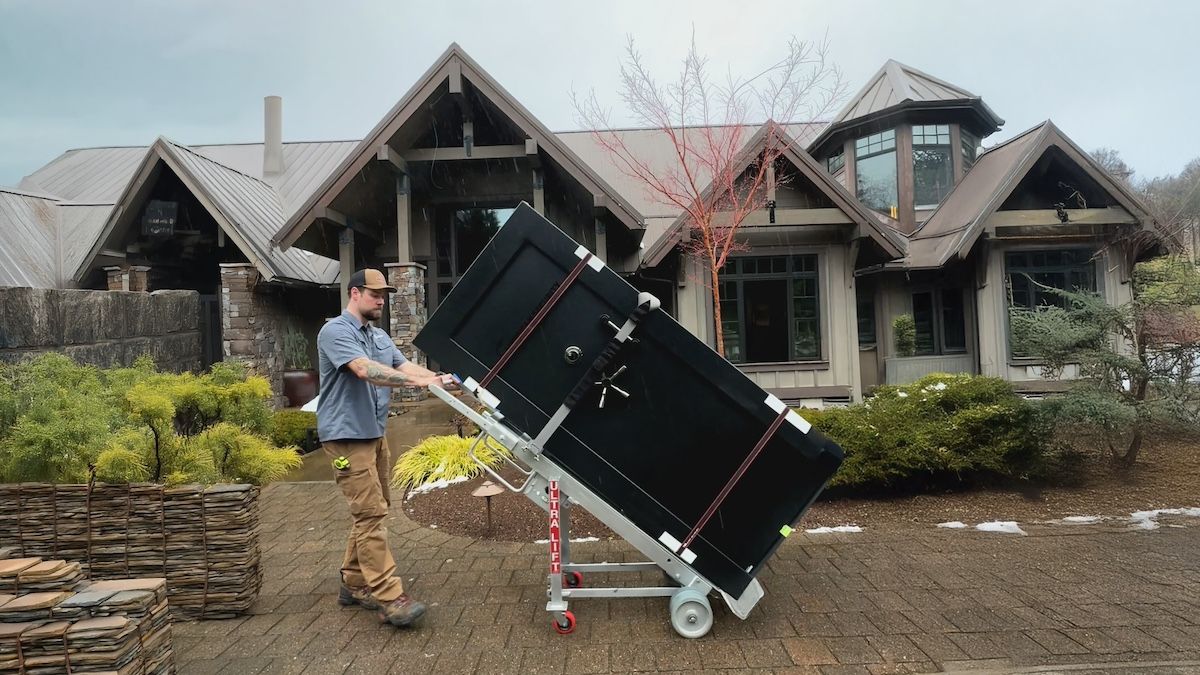

8. Plan Vault Door Delivery Before Construction Is Complete

We've moved and installed a lot of heavy safes and vault doors, and one thing can make the job dramatically easier: Access.

A vault door doesn't magically appear in the rough opening. It has to travel from the delivery vehicle to the vault room. Before ordering your door, consider stairs, slopes, sidewalks, landscaping, exterior openings, hallway widths, flooring, ceiling heights, corners, and the amount of working space available around the final opening.

New construction provides opportunities that disappear once the home is finished. In some situations, heavy equipment can position the door near the vault before walls or other parts of the structure are completed. Think about the delivery route while you still have options.

9. Consider Fire Protection When Designing a Vault Room

A secure room isn't automatically a fire-resistant room. Burglary protection and fire protection should be considered separately.

Concrete can provide significant fire resistance, but the performance of the entire room can be affected by the door, penetrations, ventilation, electrical systems, and other construction details.

What you store also matters. Paper documents, photographs, digital media, firearms, artwork, and other valuables don't all react to heat in the same way.

If fire protection is one of the main reasons you're building a vault room, discuss it during the design stage instead of assuming that concrete walls and a heavy steel door solve the problem.

10. Plan Ventilation and Humidity Control

If you're going to spend time inside your home vault room, don't overlook ventilation. Humidity is another concern, especially if you're storing firearms, documents, ammunition, or other moisture-sensitive items.

The challenge is that every opening through a reinforced wall can potentially affect security. Ventilation should therefore be part of the original design rather than something added after construction.

Your contractor and HVAC professional can help design the mechanical system, while your vault specialist can help identify potential security concerns around the door and enclosure.

11. Add Electrical, Lighting and Security Wiring Early

A home vault is much more useful when the interior is properly planned. Before the walls and ceiling are finished, consider whether you'll want:

• Electrical outlets

• Overhead lighting

• Alarm sensors

• Security cameras

• Network connections

• Dehumidification

• Charging stations

• Backup lighting

Running conduit and wiring before concrete is poured or reinforced walls are closed is usually much easier than adding it later. Even if you don't plan to install every system immediately, preparing for future upgrades can make sense.

12. Should You Hide Your Home Vault Room?

A vault room doesn't have to look like a vault from the outside. Some homeowners intentionally conceal the entrance behind cabinetry, a Murphy-style door, a false wall, a sliding feature, or another conventional-looking interior door.

Concealment can add another layer to your security strategy, but we don't recommend relying on secrecy alone. A determined intruder may eventually discover the room.

The vault itself should still be designed to provide meaningful physical security if the entrance is found.

13. How Secure Should Your Vault Door Be?

This depends largely on what you're protecting. Someone creating a secure gun room may prioritize different features than a homeowner storing a very high dollar amount of precious metals, jewelry, watches, or other compact valuables.

That is an important distinction.

In some cases, we may recommend using a vault room for firearms and larger property while placing extremely valuable, compact items inside a high-security safe located within the room. This creates layers of security.

Instead of relying entirely on one barrier, an intruder would have to get into the home, locate the vault, defeat the vault room, and then defeat the safe inside. For very high-value property, layered security can make a lot of sense.

14. How Much Does It Cost to Build a Vault Room?

There isn't one standard home vault room cost.

A vault incorporated into new home construction may be very different from adding reinforced walls to an existing finished home. Cost can depend on:

• Vault room dimensions

• Concrete and reinforcement

• Structural engineering

• Vault door selection

• Door installation

• Electrical work

• HVAC and ventilation

• Interior finishes

• Concealment features

• Alarm and security systems

• Difficulty getting the door into position

The vault door itself can also represent a significant part of the budget.

Rather than beginning with a specific dollar amount, we recommend first determining what you're protecting and the level of security you want. Then you can design the room and choose a door around those requirements.

15. How Long Does It Take to Get a Vault Door?

Don't assume you can order a residential vault door a few days before installation. Depending on the manufacturer, model, finish, configuration, and current production schedule, many vault doors can require roughly 8 to 10 weeks of lead time. Certain manufacturers may offer rush production for an additional fee.

This is another reason to select the door early. Ideally, your contractor should know the door specifications and expected delivery schedule well before the vault room reaches the final stages of construction.

16. Common Home Vault Room Mistakes

After working with homeowners, builders, safe manufacturers, and vault doors, we've seen how small planning mistakes can turn into expensive problems.

Some of the biggest issues include choosing a vault door after the opening is already built, making the opening too small, failing to account for wall depth, overlooking the ceiling, forgetting electrical or ventilation needs, and failing to plan a realistic delivery path.

Another major mistake is focusing almost entirely on the door. You can buy an extremely strong vault door, but if the surrounding wall can be breached much more easily, the door isn't necessarily the first place an attacker will go.

Think about the complete room.

Can You Add a Vault Room to an Existing Home?

Yes, but existing construction can create additional challenges. A homeowner may already have a basement room, closet, storage area, or other space that could be converted into a more secure room. The question is how much reinforcement is practical.

You may need to evaluate existing walls, floors, ceilings, door openings, utilities, and structural loads. Getting the vault door into the room can also be more difficult in a finished home than during new construction.

Before buying a door, have the entire project evaluated. Make sure the room can accommodate the door and that the door can physically reach the opening.

Can You Build a Vault Room Without Concrete Walls?

Yes. Although poured reinforced concrete can provide an excellent foundation for a high-security vault room, it isn't practical for every house. Existing rooms may be reinforced using combinations of steel, plywood, fire-resistant materials, and other construction methods.

The appropriate approach depends on the level of security you're trying to achieve. The important thing is to avoid assuming that adding a vault door automatically turns a conventional room into a high-security vault.

What's the Best Vault Door for a Home?

There is no universal answer. The best residential vault door for your project depends on the wall construction, rough opening, desired security, door swing, appearance, budget, fire-protection goals, and installation requirements.

That's why we prefer to discuss the entire project rather than simply asking homeowners which door they want.

Sometimes a customer needs an extremely heavy, high-security door. Another customer may care more about concealment, interior space, appearance, or emergency egress. The right vault door is the one that fits the entire vault-room design.

Build Your Vault Room Around a Complete Security Plan

The biggest lesson we've learned about building home vault rooms is that the best projects are planned as systems.

Don't start with four walls and figure out the vault door later. Determine what you're protecting. Choose the location. Establish the level of security you need. Think about the walls, floor, and ceiling. Select your vault door. Confirm the rough opening and wall thickness. Plan the delivery route. Then coordinate electrical, ventilation, fire protection, security, and interior storage.

Most importantly, get everyone involved early. Your builder, architect or engineer, electrician, HVAC contractor, and vault-door installer should be working from the same plan.

At NW Safe, we can help homeowners and builders evaluate residential vault doors, door sizes, wall-depth requirements, swing direction, delivery access, installation considerations, and different security options before construction reaches the point where making changes becomes difficult.

If you're considering building a vault room, talk with us before you pour the concrete. A short conversation early in the project can prevent some very expensive problems later.
