Find the Perfect Fit for Security
From standard dimensions to custom openings, learn how to choose a vault door that fits your space, meets your security needs, and allows easy access.
Choosing the right vault door is one of the most important steps when building a vault room. Whether you're creating a secure gun room, protecting valuable items, or building a panic room for your family, the size of your vault door matters.
A vault door needs to do more than fit into an opening. It should provide enough space to move items in and out, work with your wall construction, and allow you to enter and exit safely. At NW Safe, we help customers choose vault doors for new homes, remodels, and existing rooms. One of the biggest mistakes we see is waiting until construction is underway before choosing a door.
In this guide, we'll explain common vault door sizes, how to measure your opening, and what to consider before placing your order.
What Are the Standard Vault Door Sizes?
Vault doors come in several sizes to fit different rooms and security needs. While exact dimensions vary by manufacturer, most residential vault doors fall into a few common size ranges.
Some of the most common vault door sizes include:
-
80" x 30": A narrower option for smaller vault rooms or areas with limited space.
-
80" x 36": A common residential size that offers more room for everyday access.
-
80" x 42": A wider option for moving larger items into a vault room.
-
84" x 48": An oversized option for larger vault rooms and easier equipment access.
-
96" x 40": A taller door for homes with higher ceilings or special construction needs.
-
96" x 48": A large vault door for custom vault rooms and commercial applications.
These measurements are generally listed as height by width. However, manufacturers may use different methods to describe door dimensions. It's important to understand that the advertised vault door size isn't always the same as the rough opening or the actual walk-through space. Before buying a vault door, always check the manufacturer's installation specifications.
Why Vault Door Size Matters
The size of your vault door affects much more than how the finished room looks. A door that's too narrow can make it difficult to move safes, shelving, furniture, and other large items into the room. A door that's too tall or wide may require major changes to the surrounding walls.
We encourage customers to think about how they plan to use their vault room both today and in the future. For example, a 30-inch-wide vault door may provide enough room for someone to walk through comfortably. However, that same opening could make it difficult to move a large gun cabinet or other equipment.
If you're building a room to store firearms, precious metals, documents, or other valuables, consider the size of everything that may need to pass through the door. A little extra width during construction can save a lot of trouble later.
Choosing Between 30-Inch, 36-Inch, and 42-Inch Vault Doors
For most homeowners, choosing the right door width is one of the first decisions.
30-Inch Vault Doors
A 30-inch vault door may work well for a smaller room with limited wall space. These doors are often considered when converting an existing closet, storage room, or basement area into a secure space. However, narrower doors can limit what you can move through them. You should also consider whether the opening provides enough space for safe entry and exit.
36-Inch Vault Doors
A 36-inch vault door offers a good balance between access and space. This width provides more room for moving storage bins, firearm cases, and other items. For many residential projects, a 36-inch door is a practical starting point when planning a new vault room.
42-Inch Vault Doors
A 42-inch vault door offers even more room for moving large items. This can be especially helpful for gun rooms with large storage systems, heavy equipment, or oversized collections. If you're building a vault room from the ground up, we often recommend considering a wider door when the available space and budget allow.
How Tall Should Your Vault Door Be?
Most standard residential vault doors are around 80 inches tall, but taller models are also available. An 80-inch door is a practical choice for many homes because it is close to the height of a standard residential doorway.
However, larger vault rooms may benefit from an 84-inch or 96-inch door. Taller doors can make it easier to move long or bulky items into the room. They may also be a better fit for homes with high ceilings or custom construction. Before choosing a taller door, remember that the door frame, threshold, and installation hardware can affect the actual clearance.
We recommend checking the manufacturer's clear-opening dimensions rather than relying on the advertised door height alone.

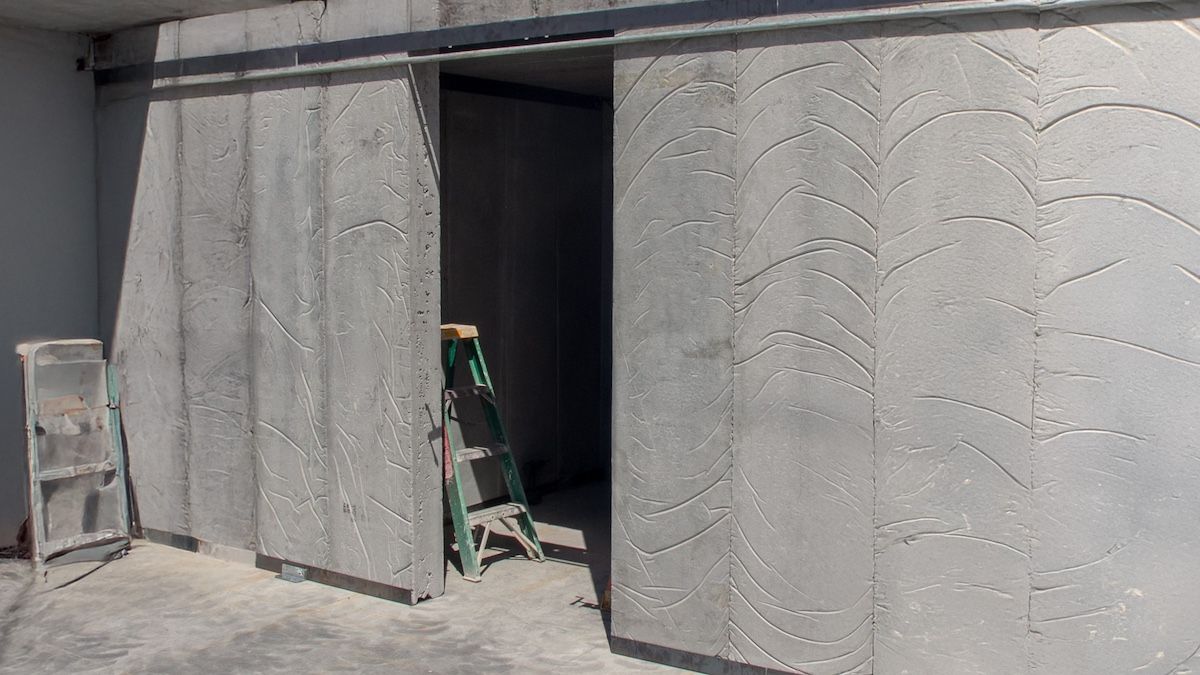

How to Measure the Rough Opening for a Vault Door
One of the biggest mistakes homeowners make is assuming that a vault door will fit into an opening with the same listed dimensions. That's not always the case.
The rough opening is the space built into the wall where the vault door and frame will be installed. When planning your opening, consider these measurements:
-
Opening width: Measure the available space from one side of the opening to the other.
-
Opening height: Measure from the finished floor level to the top of the opening.
-
Wall thickness: Determine how thick the surrounding walls will be.
-
Floor clearance: Account for the door threshold and finished flooring.
-
Installation clearance: Follow the manufacturer's requirements for positioning and securing the frame.
For example, when working with an 8-inch-thick concrete wall, an opening around 82 inches tall by 40 inches wide may be a useful planning starting point for certain door models.
However, this is not a universal requirement. The final opening must match the exact vault door you select. Our advice is simple: Choose your vault door before pouring concrete or framing the opening. Changing an opening after construction is complete can be expensive and time-consuming.
Wall Thickness Can Affect Your Vault Door Options
Vault doors are designed to work with different types of wall construction. Some homeowners build vault rooms using reinforced concrete, while others use wood framing, steel, plywood, and fire-resistant materials.
For concrete vault rooms, walls are commonly planned around 6 to 8 inches thick. However, not every vault door frame will work with every wall thickness.
Some models are designed for specific wall dimensions, while others offer adjustable frames.

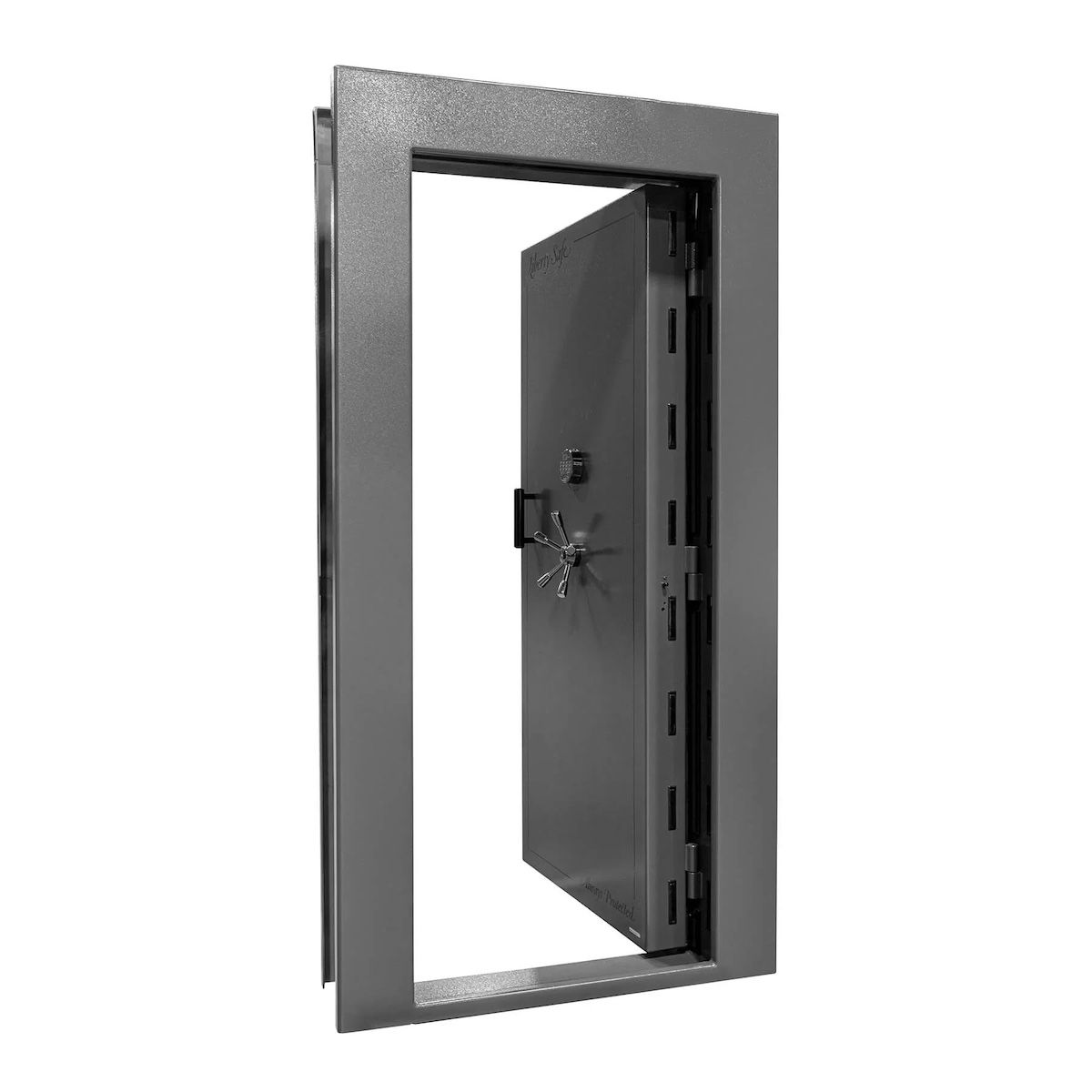

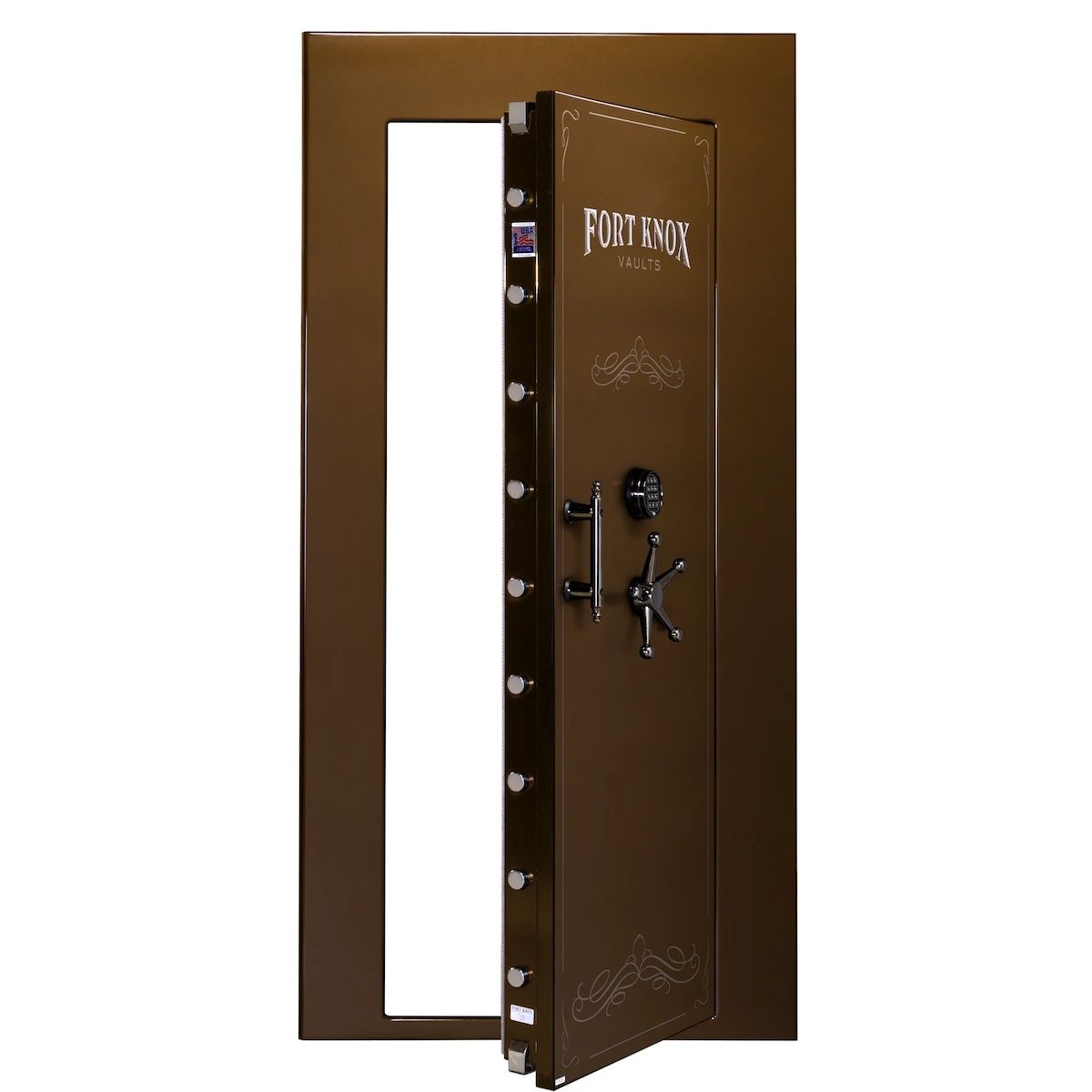

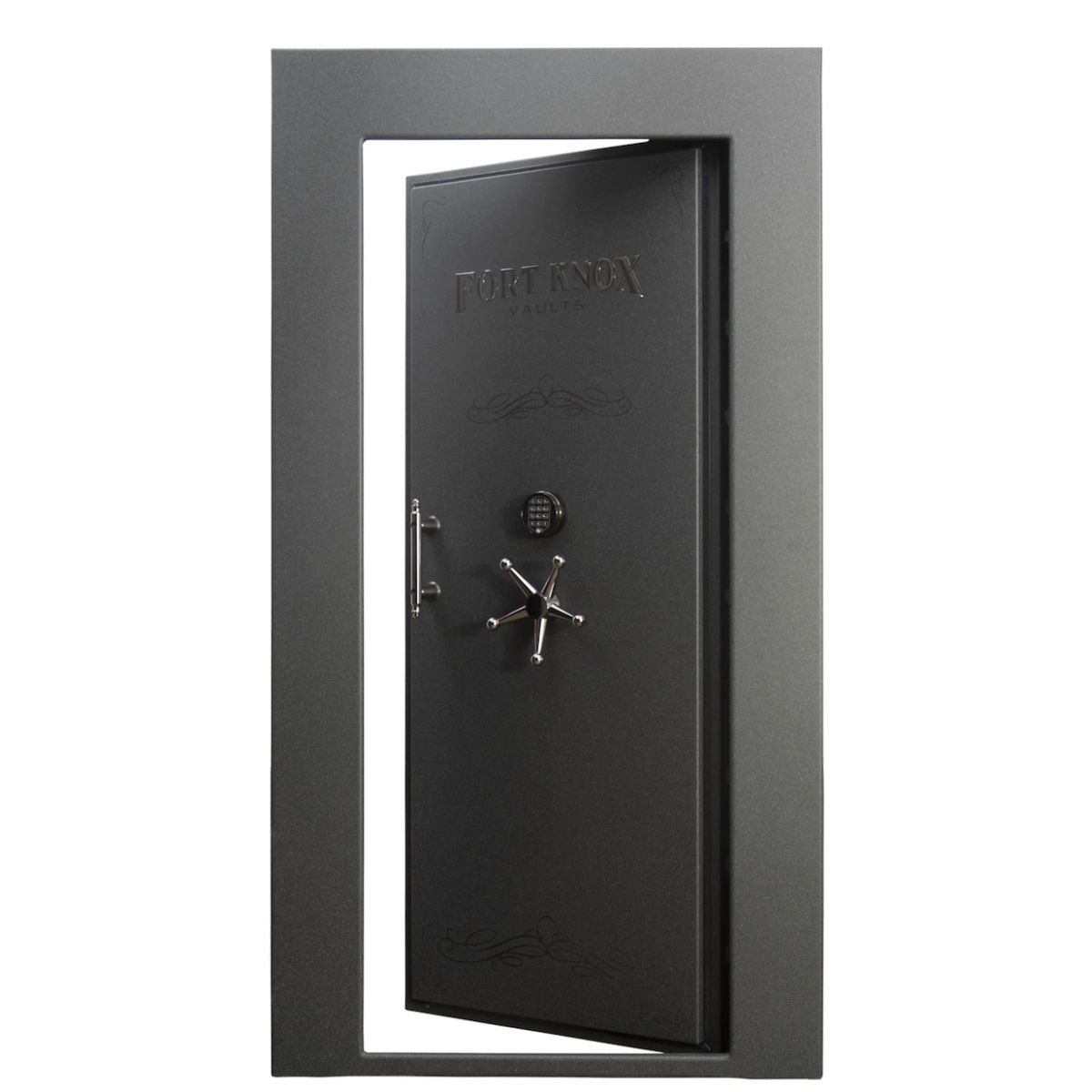

For example, the Liberty Beast vault door has a frame designed to accommodate a range of wall thicknesses. Other manufacturers, including Fort Knox, AMSEC, and Rhino, offer vault door options with different installation requirements. At NW Safe, we can help you compare these options before construction begins.
Should You Choose an In-Swing or Out-Swing Vault Door?
Vault doors are available in both in-swing and out-swing designs.
In-Swing Vault Doors
An in-swing vault door opens into the vault room. This may be useful when you want to conceal the door behind another entry or keep the hallway clear.
Out-Swing Vault Doors
An out-swing vault door opens away from the vault room. This can help preserve usable space inside, especially in smaller rooms.
The best choice depends on the room layout, available clearance, and intended use. If your vault room will also serve as a storm shelter or emergency safe room, it's especially important to consider emergency exit options.
Some vault doors offer interior release systems designed to help prevent someone from becoming trapped inside. We recommend reviewing these features carefully before making a final decision.
Don't Forget About Vault Door Delivery and Installation
Vault doors are extremely heavy. Depending on the manufacturer and model, they can weigh hundreds or even thousands of pounds. That makes installation access just as important as the opening itself.
Before ordering, consider whether the door can be moved through hallways, around corners, down stairs, or across unfinished ground. Some installations require special equipment, including forklifts or telehandlers.
We also recommend thinking about when the door should arrive during construction. In many cases, installing the vault door before the surrounding space is fully finished can make the process much easier.
Which Vault Door Size Is Best for Your Home?
There isn't one vault door size that works for every home. For smaller rooms, a 30-inch or 36-inch door may provide enough access. For larger gun rooms or custom vault spaces, a 42-inch or 48-inch-wide door may be worth considering.
If you're building a new home, we recommend planning for future storage needs rather than choosing the smallest door that works today. Remember, you can always add more shelving or storage inside your vault room, but making the doorway larger after construction can be much harder.
