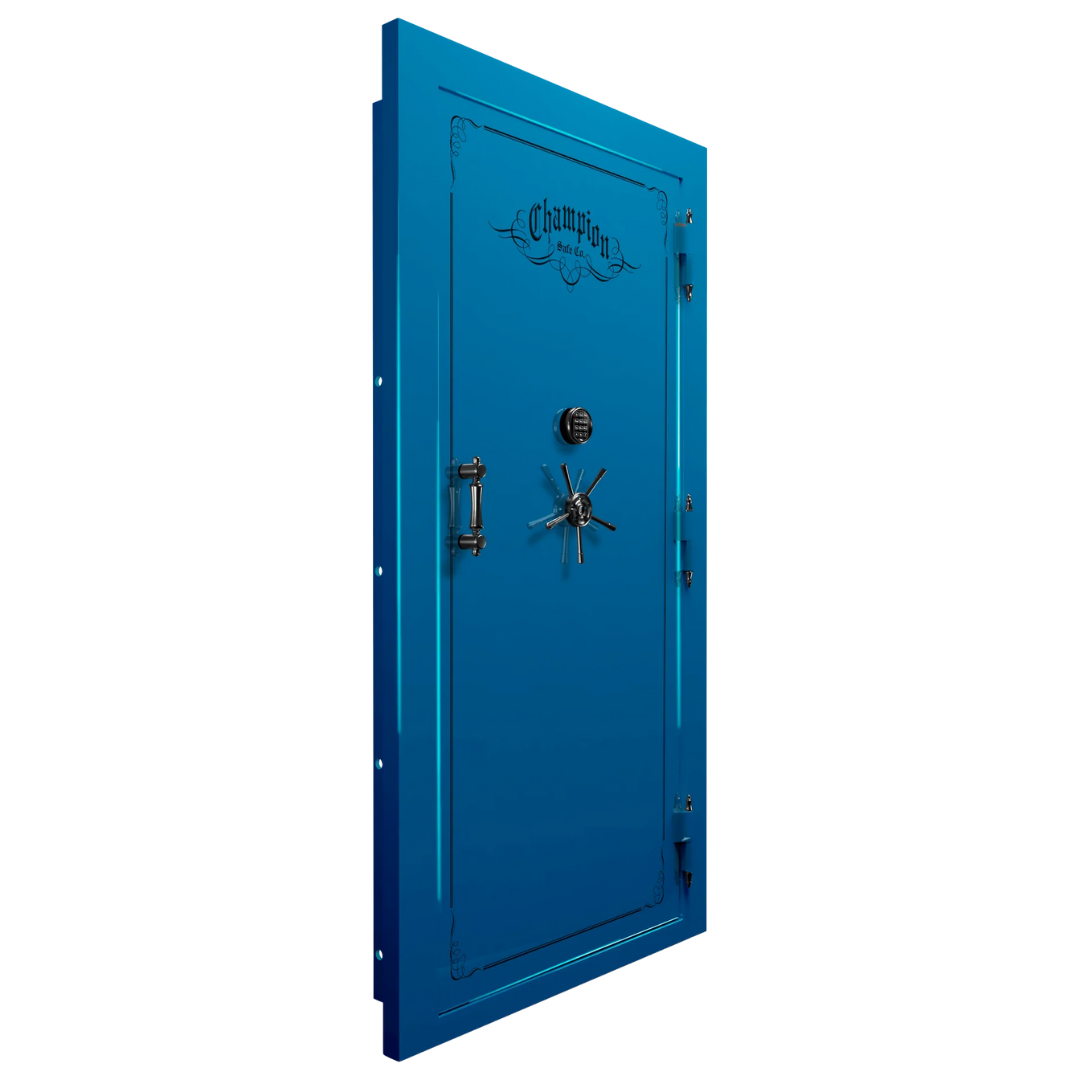

Champion CO38 Out-Swing Vault Door

About

The Vault Door comes with 2 Layers of 5/8" Type X fire insulation, inside door quick release feature for extra safety and at a reasonable price.

Specs

The new vault door is constructed with the same strength and technology as the gun safes by Champion Safe Company

FEATURES

• Steel Thickness - 1/4" Steel Plate
• Inner Door Steel Thickness - Full 12-Gauge Steel Plate
• Door Frame Steel Thickness - 1/4" Steel Plate
• Door Thickness - 4 1/2" Double plate Steel
• Vault Door Weight - 820 lbs
• Rough Door Opening - 38"W x 83"H
• Door Frame Dimension - 43"W x 84"H
• Number of Door Bolts - 24 - 1 1/2" Active (Out Swing Door)/21 - 1 1/2" Active (In Swing Door)
• Fire Insulation - 2 Layers of 5/8" Type X

DOUBLE-PLATE STEEL DOOR

• Champion vault doors are constructed of two thick, A36 carbon steel panels with sandwiched fire insulation. This design gives greater rigidity, hence more security and better fire protection.

ACTIVE BOLTWORKS

• According to many lock-smiths, Champion Safe Company has "the strongest, smoothest boltworks in the industry." Active bolts are featured on all Champion vault doors - no cheap dead bolts!

THREE EXTERNAL HINGES

• To support the weight of Champion's massive vault door, external ball-bearing hinges are used. External hinges offer greater rigidity and a wider door opening.

DELTA DOOR FRAME (IN-SWING MODELS ONLY)

• Mechanical engineers have long used triangular reinforcements to increase structural strength. The frame's delta shape provides strength and rigidity second to none.

INSIDE DOOR QUICK RELEASE

• For safety and added security, a quick release lever is installed to the interior side of the vault door for the prevention of accidental lock-ins and fast release of the locking mechanism within the door.

ROYCE ROLL BAR

• Because of the massive vault door's weight, a Royce Roll Bar has been added to provide a secure hand-hold for opening and closing the door. It relieves the locking mechanism handle from bearing the weight.
