About
Special Features: 2 hour, 350°F factory fire rating.
Body & Door: Multi-layered structure that combines outer and inner steel plates enclosing a monolithic material. The door is reinforced with anti-penetration alloy grid, providing high protection against concentrated attacks with mechanical and electrical tools.
Bolts & Locking Mechanisms: Three-way active boltwork. Double-action locking mechanism. Glass plate relocking protection on all locks.
Interior Fitting: Adjustable removable shelves. A hole for an alarm system connection - optional.
Locks: Two UL approved locks. Mechanical or digital combination lock and a high security key lock.
Security
Glass Plate Relocking Protection
Reinforced Bolt Cylinders
4-way Bolt Engagement
Special Alloy Grid
Double Locking Protection
Models
Model | Inside Dimensions* | Outside Dimensions* |
Volume |
Weight | Shelves |
H x W x D | H x W x D | Cu. Ft. | lbs. | ||
UV251916 | 25" x 19" x 16" | 31.5" x 25.5" x 27" | 4.4 | 1,370 | 1 |
UV342018 | 34" x 20" x 18" | 40.5" x 26.5" x 29" | 7.1 | 1,800 | 1 |
UV462018 | 46" x 20" x 18" | 52.5" x 26.5" x 29" | 9.6 | 2,220 | 2 |
UV592018 | 59" x 20" x 18" | 65.5" x 26.5" x 29" | 12.3 | 2,670 | 3 |
UV592023 | 59" x 20" x 23" | 65.5" x 26.5" x 34" | 15.7 | 3,040 | 3 |
UV633218 | 63" x 32" x 18" | 69.5" x 38.5" x 29" | 21 | 3,550 | 3 |

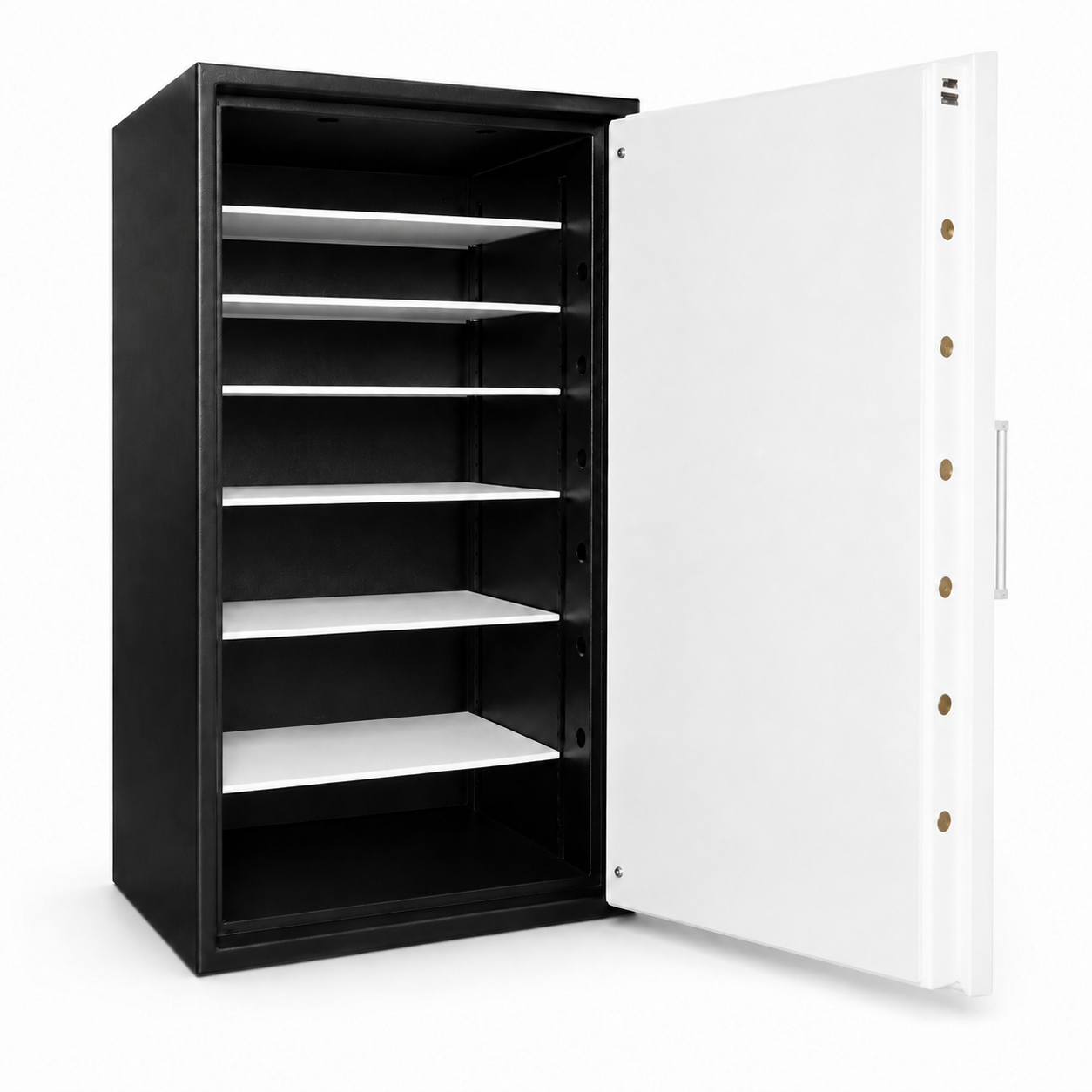

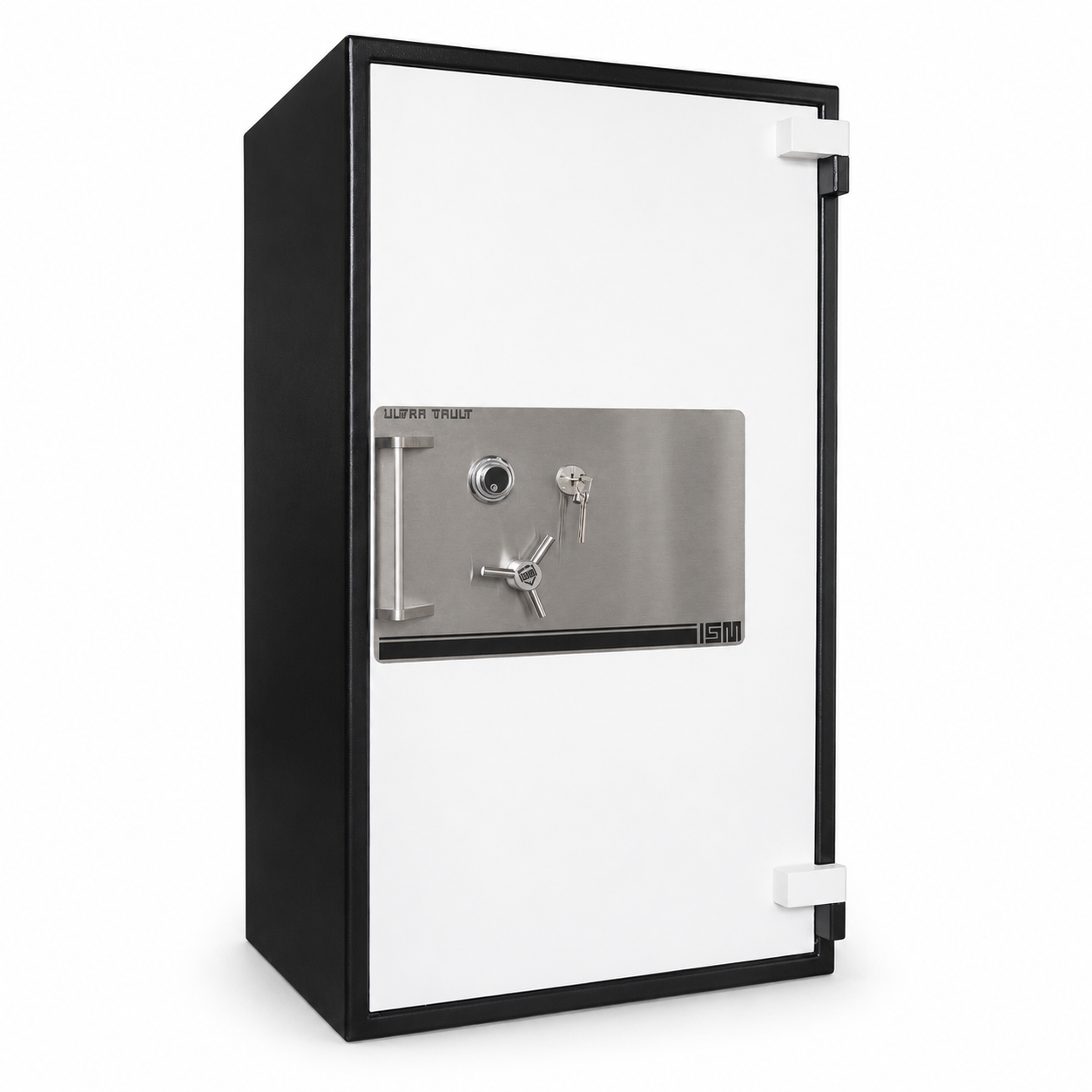

UV683626 | 68" x 36" x 26" | 74.5" x 42.5" x 37" | 36.8 | 4,690 | 4 |
* Weight Tolerance - 5%.
** Dimensions Tolerance - ±0.5’’.
*** Add 2’’ to outside depth for 3-Spokes Operating Handle.
**** Add 3.55’’ to outside depth for Pull-Handle.
Colors
RAL 9010, RAL 7040, RAL 7016, RAL 9005
