About

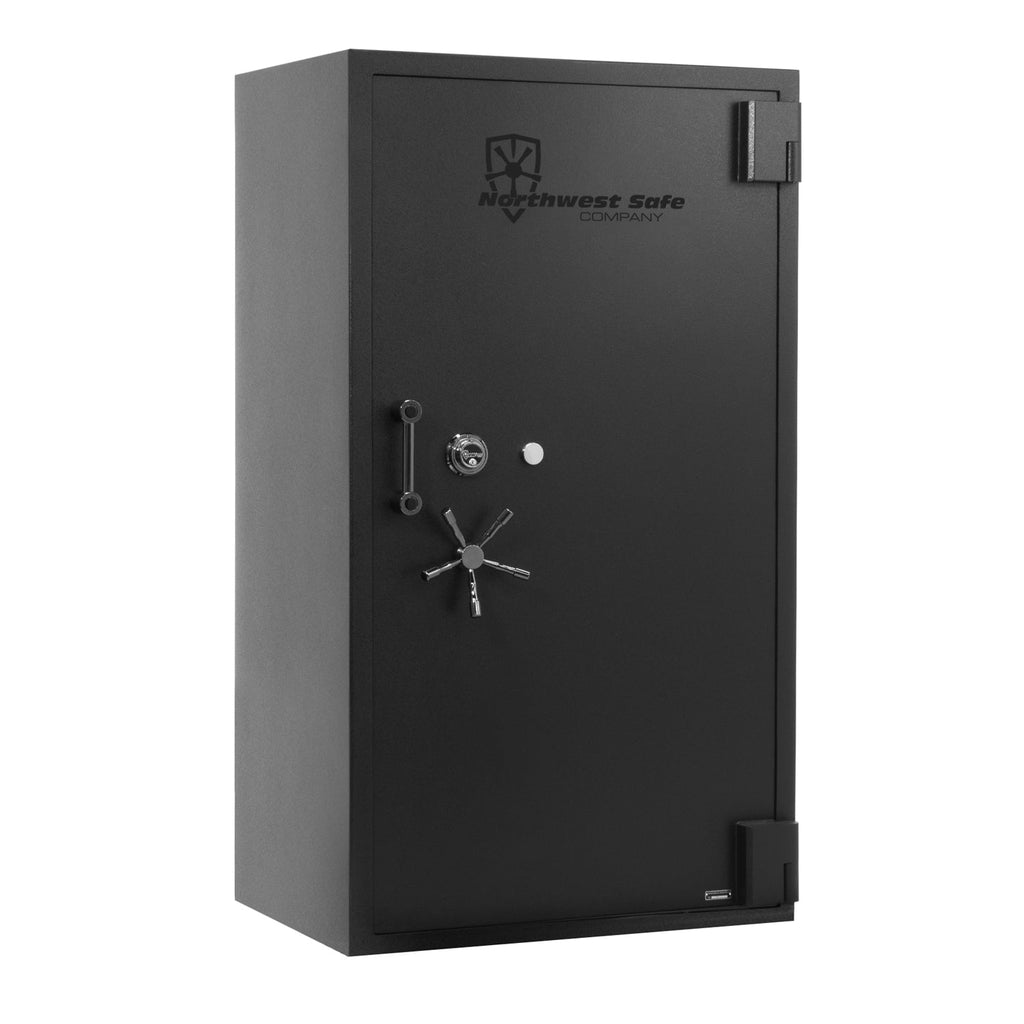

The RFX Series U.L. Listed TL-30×6, six-sided high-security gun safes are made in the United States using the latest testing procedures set forth by Underwriters Laboratories

Constructed with a 3” defense barrier of inner and outer steel plates enclosing a unique interlocking heavy duty steel barrier, 12,000 PSI high-strength concrete and a high-density high-strength ceramic matrix.

The high density insulating materials incorporated in the door and body also insure two hours of certified fire protection. The superior design and craftsmanship make the RFX Series impervious to burglary attacks attempted by the most sophisticated equipment utilized today and the vaults contents against intense fires.

Specs

Overview

Exterior Dimensions (H x W x D)	76" x 42" x 29.25"
MIN. DOORWAY WIDTH CLEARANCE TO DELIVER SAFE*	32"

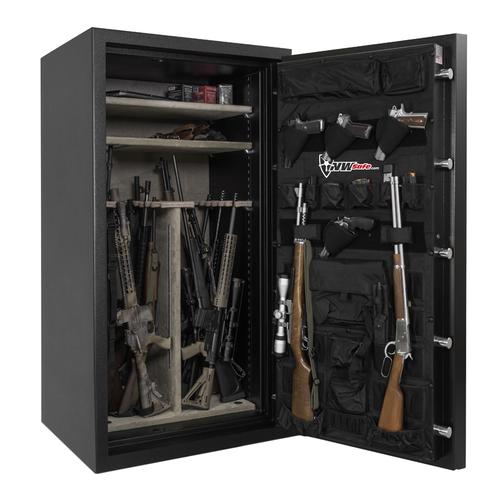

Gun Storage	4 Shelf (Tan)
PLEASE NOTE: Gun capacity may vary depending upon size of guns and scopes.
Fire Rating	2 Hour Fire Rating
Body Steel Thickness	Propreitary, Not Disclosed
Weight	4,578 lbs.
Warranty	More Info
Country of Origin	MADE IN THE USA
Price Match Guarantee	YES
We will beat any advertised price on the same product.

Dimensions

Exterior Dimensions (H x W x D)	76" x 42" x 29.25"
Overall Exterior Depth (with handle installed)	32.5
Interior Dimensions (H x W x D)	70 x 36 x 20
Clear Door	70 x 36
FOOTPRINT (W x D)	42 x 29.25
Exterior Cubic Feet (safe body only)	54
Interior Cubic Feet	29.2
Door Swing Projection at 90°	69.25
Door Swing Projection at 180°	81.75

Fire Protection

Fire Rating	2 hrs. w/ Max Temp. of 1850°
Fire Temp	Temperatures Up To 1850°
Fire Insulation Type	Concrete exceeding 12,000 PSI
Door Seal	Heat-Activated, Expanding Palusol™
Smoke Seal	YES

Security

Security Rating	U.L. Listed TL-30x6
Door Bar / Bolt Sides	3 sided coverage (2 active side)**
Bar / Bolt Count	11
Bar / Bolt Type	1.25 Steel Round Bolt (Chrome)
Locking Mechanism Type	Direct Cam-Drive
Door Type	Propreitary, Not Disclosed
Door Thickness	6"
Body Steel Thickness	Propreitary, Not Disclosed
Total Body Thickness	3" Made of 5 different security barriers.
Main Lock	U.L. Listed S&G Dial or Titan Pivot E-Lock
Secondary Lock	S&G 6870 Auxiliary High Security Keylock
Relocker Type	Spring Loaded Relocker w/ optional glass
Hardplate Lock Protection	Tool Steel Hardplate w/ Active Roll Pins
Anchor Holes	Optional (1) 9/16" Floor

Style

Exterior Finish	Black Textured
Fabric Type	NONE, Color Match to Exterior
Upholstery	NONE, Color Match to Exterior
Handle Style	5 Spoke Black Chrome
Interior Type	4 Shelf (Tan)
Power Access Hole	YES
Interior Lighting	optional
Door Panel	NO, Available on RFX Series
